OES Co., Ltd. is now uniquely positioned and evaluated by our catalytic ammonia eliminating technology in Chemical and Electronics Industries.

Characteristics

• Convert Ammonia to harmless Nitrogen
  4NH₃+3O₂→2N₂+6H₂O
• Possible release into the atmosphere.
• 1.8% Ammonia could be safely destructed.
  > > Compactness of equipments, Energy saving
• Simultaneous treatment of Hydrogen containing gases are also possible.
• No secondary reaction products. clean gas emission.
• High efficiency and high performances. SV.16000h^-1
• Excels in the durability for thermal shock and mechanical shock.
• Superior destructive abilities for bad odor.

---

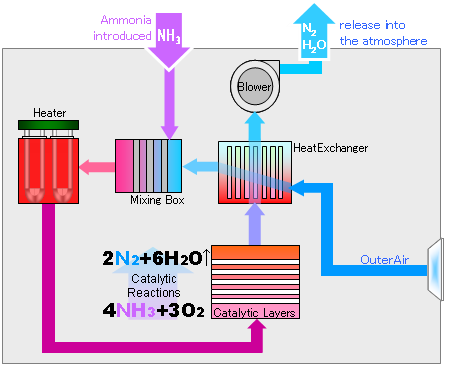

Flow Chart of Ammonia Gas Treatment (Catalytic Burning Method)

1)Taking outer air and heating it through heat exchanger.
2)Gases containing Ammonia introduced to box and mixed with heated air.
3)Mixed gas heated up to temperatures of initiation for catalyst reaction.
4)During passing through catalytic layers, Ammonia and Oxygen reacted on catalytic surface to produce Nitrogen and water vapor. (Catalytic Burning Method)
5)Produced dissociation heat of Ammonia heating outer air at heat exchanger.
6)Nitrogen and water, after cooling, exhausted into air.

---

Performances and Efficiencies of Dirty Gas Purification

*Gas Treatment Example : Ammonia

Items	Inlet	Exhaust
Ammonia	16000	below 0.1
Nitrogen Oxide	0	below 50

unit;ppm(Volume)

*Gas Treatment Example : MOCVD

Items	Inlet	Exhaust
Hydrogen	10000	below 0.1
Nitrogen Oxide	0	below 50

unit;ppm(Volume)

---

Performances and Efficiencies of Badly Smelling Gas Deodorization Odor Concentration

Fermentation odor, rotten organics odor and odor containing ammonia should be decomposed more than 99%
Bad odor from fermented composts, human waste, sewage sludge, seafood processing, poultry farming, swine keeping, waste water from farms etc. these odor should be deodorized satisfactory.

*Deodorizing Example : sewage compost

Items	Inlet	Exhaust
Ammonia	150	below 0.1
Methyl Mercaptan	1.3	below 0.0001
Methyl Sulfide	0.85	0.0001
Trimethylamine	2.3	below 0.0005
Nitrogen Oxide	9.4	10.0

unit;ppm(Volume)

*Deodorizing Example : animal excrements disposing

Items	Inlet	Exhaust
Ammonia	14	1.2
Methyl Mercaptan	2.10	0.0049
Methyl Sulfide	53	0.29
Concentration of Odor (Japan standard)	170,000	55

unit;ppm(Volume)

---

*Data shown as actually observed,not for insurance.
